Product Summary

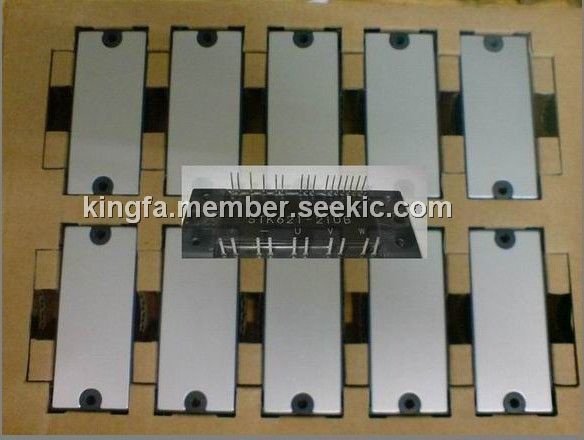

The STK621-210B is an IPM module. The applications of the device include High Power Switching Applications and Motor Control Applications.

Parametrics

STK621-210B absolute maximum ratings: (1)Supply voltage:500V; (2)Collector-emitter voltage: 600V; (3)Output current: ±10A; (4)Output peak current:±15A.

Features

STK621-210B features: (1)Integrates inverter & control circuits (IGBT drive units, protection units for over-current, under-voltage &over-temperature) in one package; (2)The electrodes are isolated from case; (3)High speed type IGBT; (4)Low thermal resistance.

Diagrams

STK621-210B block diagram
